Electric backpack type fine water mist fire extinguishing device

Introduction

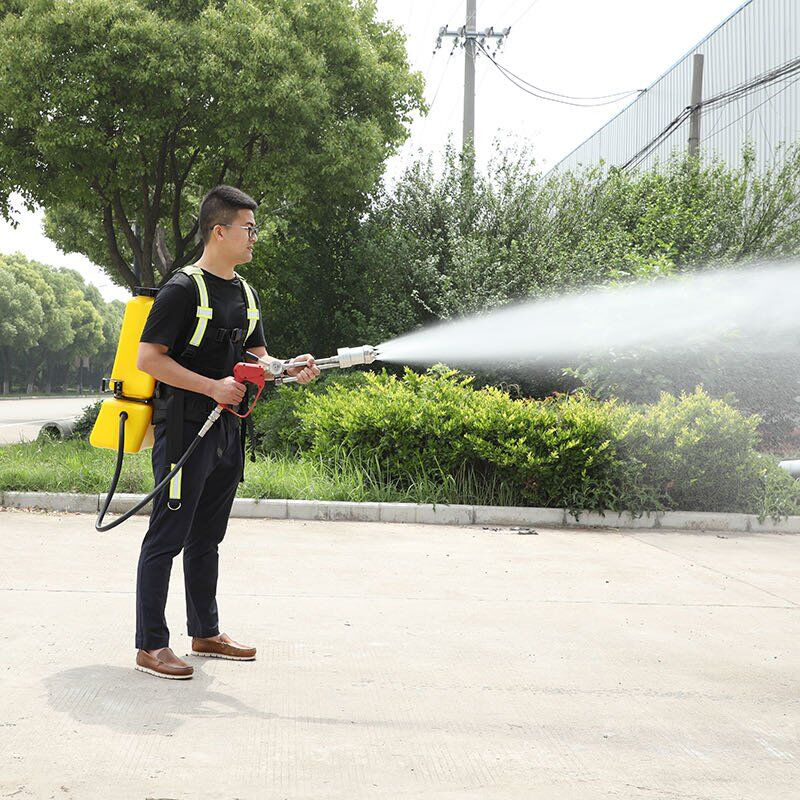

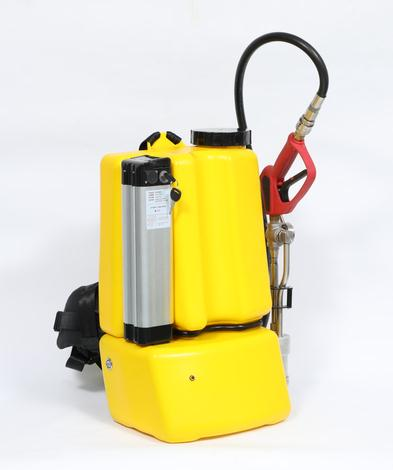

This product is a motor-driven water pump that generates a certain pressure of water flow. After controlling the pressure and flow of the water flow, it is sprayed by a special spray gun that can generate fine water mist to extinguish the fire. The modified device is provided with a variety of protections such as pressure and current limiting, water shortage protection, and undervoltage reminder. The system does not have a pressure vessel. It completely solves the hidden dangers of using pressure vessels.

Scope of application

Mainly used in gas stations, community mini-fire stations, engine rooms, airports, ports and terminals, subway stations and other transportation departments, key cultural relics protection sites, military command posts, ship engine rooms, key petrochemical departments, large stores, hotels, etc. It is the security of major festivals, events and conferences.

Features

No pressure vessel, completely solved the safety hazards of using pressure vessels

Does not require high pressure gas cylinders as power, eliminates the need for air filling, and is more versatile

It can be used after charging, saving equipment cost

technical parameter

Flow: (fine water mist / DC foam) 0.26L / S

Device weight: <32kg

Carrying weight: <30kg

Foam Type: AFFF-AR

Water tank capacity: 16L

Fire extinguishing medium: water, foam mixture

Power: DC 24V

Foaming multiple ≧ 5

Lithium battery: 20AH

Continuous working time under full power: 8 buckets of water

Working pressure: 1.4MPA

Rated mixing ratio: 3% -5%

Spray distance:

DC: ≧ 16m

Water mist: ≧ 8m

Fire extinguishing level:> 4A, 144B

Hose length: 1.2M
