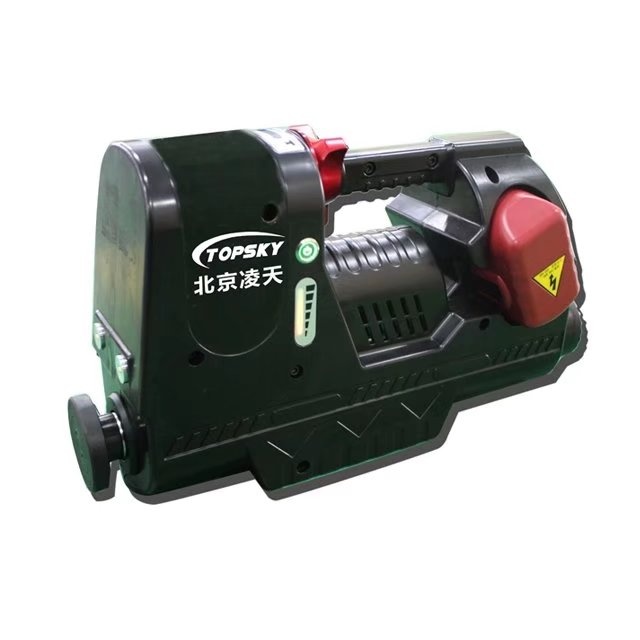

BR80 electric top rod

Introduction:

The  electric top rod adopts the operation mode of integrated machine.It can be opened within 1s which can greatly shorten the rescue process. The two large-capacity 4AH lithium batteries can be charged quickly and the working time can be long enough to meet the needs of the complex rescue environment.

Main technical parameters：
  Rated support force          127KN

  Support top trip              380mm

  Extension rod length         100/175/275mm

  The scope of work            550-1480mm

 Largest traction                50KN

   Weight                      18.6kg

   Outside Size                 550*300*175mm
