Water mist system (Backpacks) QXWB12-北京凌天智能装备集团股份有限公司

últimos productos

Información del Producto

Parameters

proveedor：
modelo: QXWB12
codificación:
prueba:
Certificación: CE certificate

Descripción del Producto

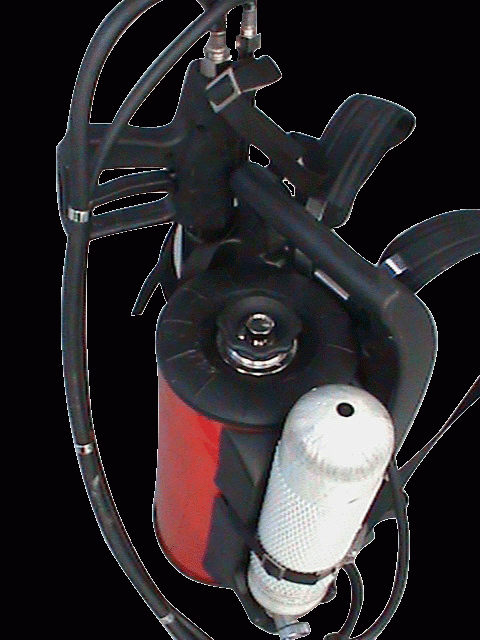

QXWB12 Water mist system (BACKPACK)

Overview:

Backpack water mist system is convenient to carry for firefighters to enter the fire disaster scene. Therefore it can shorten the reaction time for firefighter and reduce the damage

Technical specification:

Extinguishing agent tank
Filling capacity	12 litres
Material	Stainless steel
Working pressure
Pressure	7,5 bar
Propellant gas bottle
Medium	Compressed air
Pressure cylinder	Filling pressure: 300bar
Pressure cylinder	Volume: 2 litres
Technical parameters
Operating time	Appr. 25 sec.
Flow rate	24 litres/min
Operating temperature	Tmin +5°C; Tmax +60°C
Carrying device	Ergonomically shaped
Extinguishing gun
Changeover time	Appr. 3 sec. (jet to spray mode)
Lancing distance	Appr. 16 – 18m jet mode
Lancing distance	Appr. 6 – 7m spray mode
Ratings (extinguishing performance)
A Fire Class	55 A (as per EN3)
B Fire Class	233 B (as per EN3)
B Fire Class	IIB (EN 1866) (e.g.: with exting. agent Moussel C)
Dimensions
Weight empty	35 kg
