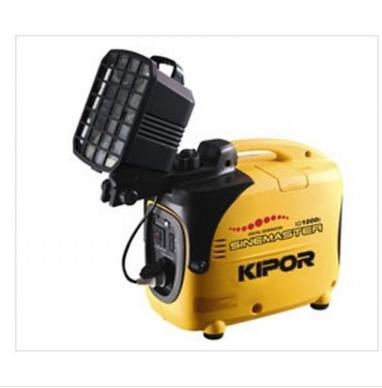

Digital generator set  IG1000s

Technical Parameters:

Model:IG1000s

Rated frequency:（Hz）50/60

Rated voltage (V):230    120/240

Rated Current (A): 3.9   7.5/3.75

Rated speed (r / min): 5500

Rated output power: 0.9

The maximum output power (kVA): 1.0

DC Output: 12v-5.0A

Number of phases: single-phase

Structure: portable silent type with light

Oil Tank Capacity (L): 2.6

Unit fuel consumption (g / kW.h): 550

Uptime (rated output) (hr): 5.0

Noise (no load - full load) (A) / 7m: 54-59

Dimensions (L × W × H) (mm): 600x250x400

Net weight (kg): 16

Start: recoil hand start

Fuel type: automotive unleaded gasoline

Oil type: CD grade or above SAE10W-30,15W-40

Engine Model: KG144

Cylinder structure form: Vertical single-cylinder, four-stroke, air-cooled, overhead valve

Bore × Stroke (mm): 43.5× 36

Displacement (ml): 53.5

Compression ratio: 8.5: 1

Rated power [Kw (r / min)]: 1.3/5500

Ignition system: all-transistor electronic ignition (TCL)

Spark Plug: UR5

The lowest fuel consumption (g / kW.h): 420
