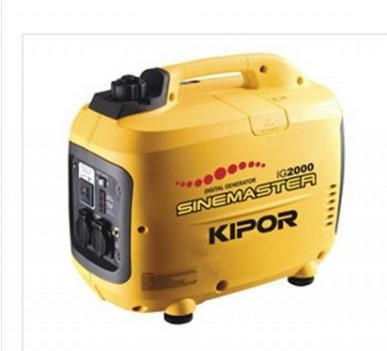

Digital generator set IG2000

Technical Parameters:

Model:IG2000

Rated frequency:（Hz） 50       60

Rated voltage (V):230    120/240

Rated Current (A): 7  13.3/6.7

Rated speed (r / min): 4500

Rated output power: 1.6

The maximum output power (kVA): 2.0

DC Output: 12v-5.0A

Number of phases: single-phase

Structure: portable silent type

Oil Tank Capacity (L): 3.7

Unit fuel consumption (g / kW.h): 550

Uptime (rated output) (hr): 3.0

Noise (no load - full load) (A) / 7m: 61-73

Dimensions (L × W × H) (mm): 515X300x430

Net weight (kg): 22

Start: recoil hand start

Fuel type: automotive unleaded gasoline

Oil type: CD grade or above SAE10W-30,15W-40

Engine Model: KG158

Cylinder structure form: Vertical single-cylinder, four-stroke, air-cooled, overhead cam

Bore × Stroke (mm): 58× 40

Displacement (ml): 105.6

Compression ratio: 8.5: 1

Rated power [Kw (r / min)]: 2.2/4500

Ignition system: all-transistor electronic ignition (TCL)

Spark Plug: UR5

The lowest fuel consumption (g / kW.h): 420
