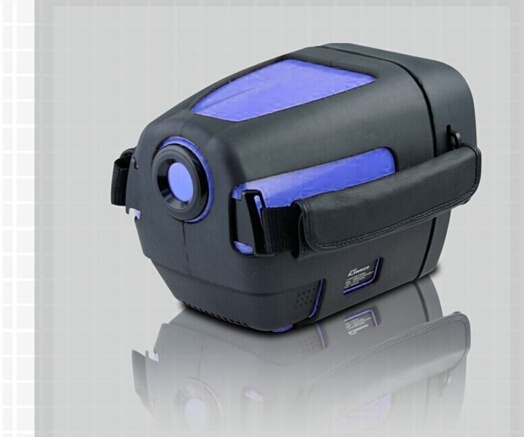

Fire infrared thermal imager HRYXJ-A

Model: HRYXJ-A

1.    Overview

HRYXJ-A fire infrared thermal imager is one fire rescue imager which can display the infrared spectrum of the object with the high resolution and high sensitivity. It can detect the static and dynamic objects. Also it can store the images, video and audio to the Micro SD card to facilitate the  further analysis and statistics.

The HRYXJ-A fire infrared thermal imager has the excellent performance, superior quality. It is quick to set up and easy to operate. It is generally used in anti-terrorism search, fire fighting rescue .It is explosion proof, can be sued in hazardous places.

2.    Specification

1). Field of view/ minimum imaging distance: 38°  x28.5° / 0.5m

2).Spatial resolution: 4.1 mrad

3). Thermal sensitivity: ≤0.08℃@30℃

4). Sensor type: UFPA

5). Resolution: 160x120

6). Working band: 8-14um

7). Image mode: Infrared light image display

8). Screen: TFT LCD screen

9). Video output: NTSC (60Hz) or PAL (50Hz) Composite Video

10). Temperature range: -20 ℃ ~ + 250 ℃; + 200 ℃ ~ + 600 ℃

11). Temperature mode: automatically capture the highest temperature point / center can temperature

12). Parameters Correction: Automatic

13). Explosion level: Exib I

14). Battery Working Hours: Nickel-metal hydride rechargeable battery pack / approximately 2.5 hours
